Description

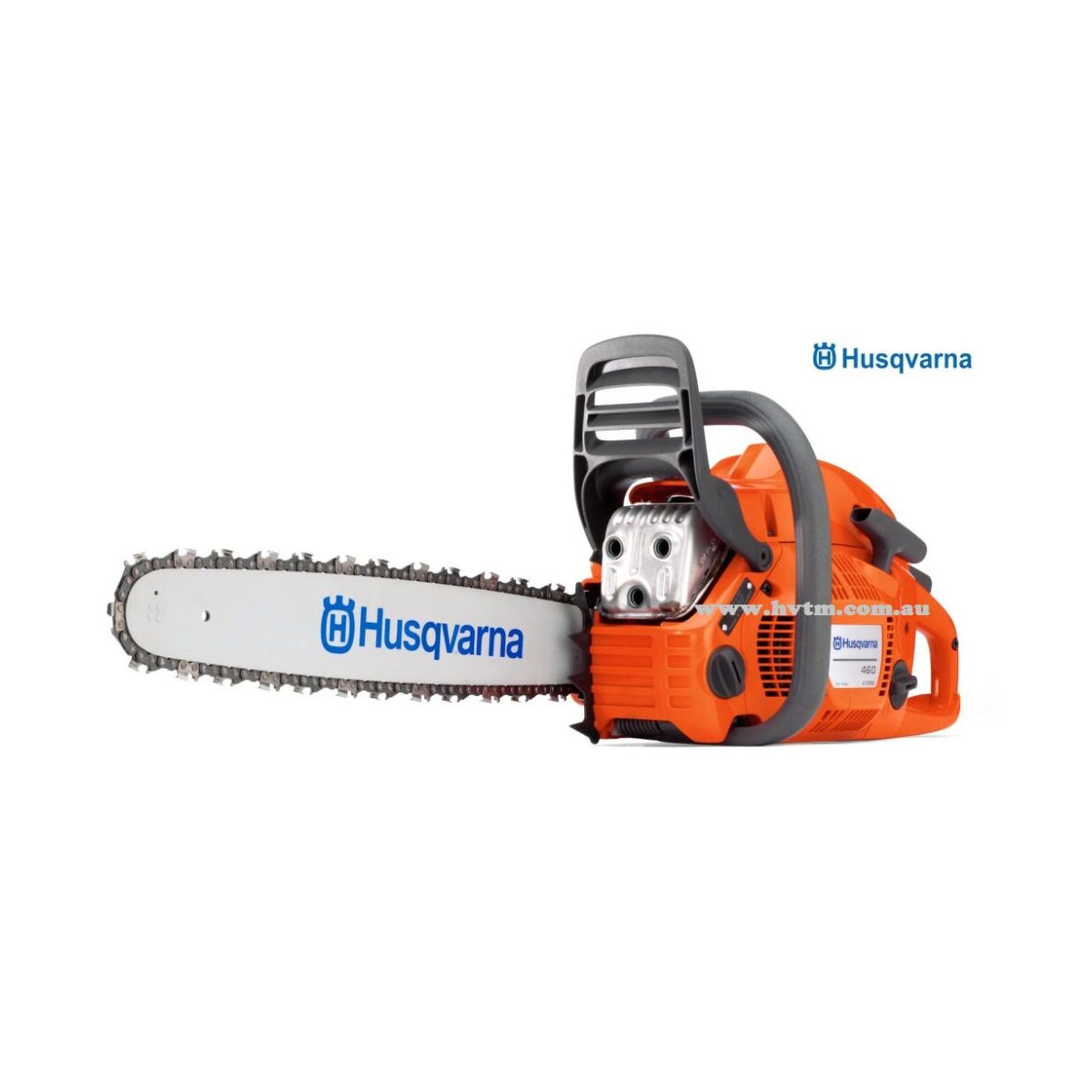

A robust all round saw, ideal for demanding cutting jobs where more power is required for a longer guide bar. Equipped with X-Torq engine with high torque over a wide rpm range. The saw body is ergonomically designed allowing for easy handling of the saws power. Further features include Smart Start, Air Injection, LowVib and combined choke/stop control.

Engine specification

Cylinder displacement                                         3.68 cu.inch / 60.3 cm_

Cylinder bore                                                         1.85 inch / 47 mm

Cylinder stroke                                                      1.26 inch / 32 mm

Power output                                                         3.62 hp / 2.7 kW

Maximum power speed                                       9000 rpm

Fuel tank volume                                                  14.88 fl oz / 0.44 litre

Fuel consumption                                                437 g/kWh

Ignition module air gap                                      0.01 ” / 0.3 mm

Idling speed                                                           2700 rpm

Spark plug Champion                                         RCJ7Y, NGK BPMR7A

Electrode gap                                                        0.02 ” / 0.5 mm

Torque, max.                                                         3.4 Nm/7000 rpm

Lubricants

Oil tank volume                                                    0.7 US pint / 0.32 litre

Oil pump type Automatic

Vibration & noise data

Equivalent vibration level                                  (ahv, eq) front / rear handle 3.5/4.5 m/s_

Sound pressure level at operators ear              104 dB(A)

Sound power level, guaranteed (LWA)            114 dB(A)

Cutting equipment

Chain pitch                                                             3/8″

Chain speed at 133% of maximum engine power speed                        87.27 fts / 26.6 m/s

Recommended bar length, min-max                                                         13″-24″ / 33-50 cm

Sprocket type                                                        Spur 7

Bar mount                                                             Large

Overall dimensions

Weight (excl. cutting equipment)                     12.8 lbs / 5.8 kg
